Black Hole Accretion:
Mechanisms, Observational Evidence, and Implications for Galactic Evolution

Abstract:

Black hole accretion is a fundamental astrophysical process through which matter is drawn into a black hole, resulting in the emission of vast amounts of energy. This process is essential for understanding the dynamics of quasars and active galactic nuclei (AGN), which are among the brightest and most energetic phenomena in the universe. The study of accretion disks is pivotal in modern astrophysics as it allows scientists to indirectly observe black holes and explore their influence on cosmic evolution. This article delves into the anatomy of accretion disks, the mechanisms of energy generation, the observational evidence supporting these phenomena, and their implications for galaxy evolution.

Black Hole Accretion Disk, credit: NASA’s Goddard Space Flight Center/Jeremy Schnittman

Introduction

Accretion is one of the most energetic processes in the universe, driving the luminous emissions of quasars, active galactic nuclei (AGN), and X-ray binaries. As matter—primarily gas and dust—falls toward a black hole, it forms a rapidly rotating accretion disk, where gravitational potential energy is converted into intense radiation. This process allows astronomers to study black holes indirectly, despite their event horizons being fundamentally unobservable.
Beyond illuminating some of the brightest cosmic phenomena, accretion plays a pivotal role in galaxy evolution, influencing star formation and regulating supermassive black hole growth. Understanding this mechanism is essential for deciphering the interplay between black holes and their host galaxies. Recent advancements in multiwavelength astronomy and high-resolution imaging have provided unprecedented insights into the physics of accretion disks, shedding light on the extreme environments near black holes.

Anatomy of an Accretion Disk

Accretion disks are highly dynamic systems governed by complex interactions of gravity, magnetism, and relativistic physics.
Key Features of Accretion Disks
Inner Regions:- The inner edge of the disk, known as the innermost stable circular orbit (ISCO), is determined by the black hole's spin. Near the ISCO, matter experiences intense heating due to viscous dissipation, reaching temperatures of millions of degrees, typically around 107K and emitting X-rays.
Outer Regions:Cooler and less energetic, the outer disk radiates primarily in the optical and infrared wavelengths. These regions are vital for understanding the feeding processes of black holes.
Corona:A hot plasma surrounding the disk that emits high-energy X-rays through Compton scattering. The physical origin of the corona remains a topic of active research, with implications for black hole spin measurements.
Relativistic Jets:Some black holes launch collimated jets of particles at near-light speeds, driven by the interplay of magnetic fields and the black hole's rotation. These jets are detectable across radio, optical, and X-ray wavelengths and serve as tracers of accretion processes. For example, jets from the supermassive black hole M87* have been observed extending over 5,000 light-years, demonstrating the power of these phenomena.
Radiation Mechanisms
The radiation emitted from an accretion disk is primarily a result of frictional heating, where gravitational potential energy is converted into thermal energy. The disk emits radiation across the electromagnetic spectrum, including X-rays, ultraviolet (UV), and visible light.
Relativistic Effects Relativity dominates the inner regions of the accretion disk, leading to phenomena such as:
Gravitational Redshift: Light emitted from the inner disk is stretched as it escapes the intense gravitational pull of the black hole.
Doppler Beaming: Rotation of the disk enhances emission from material moving toward the observer while dimming emission from material moving away.

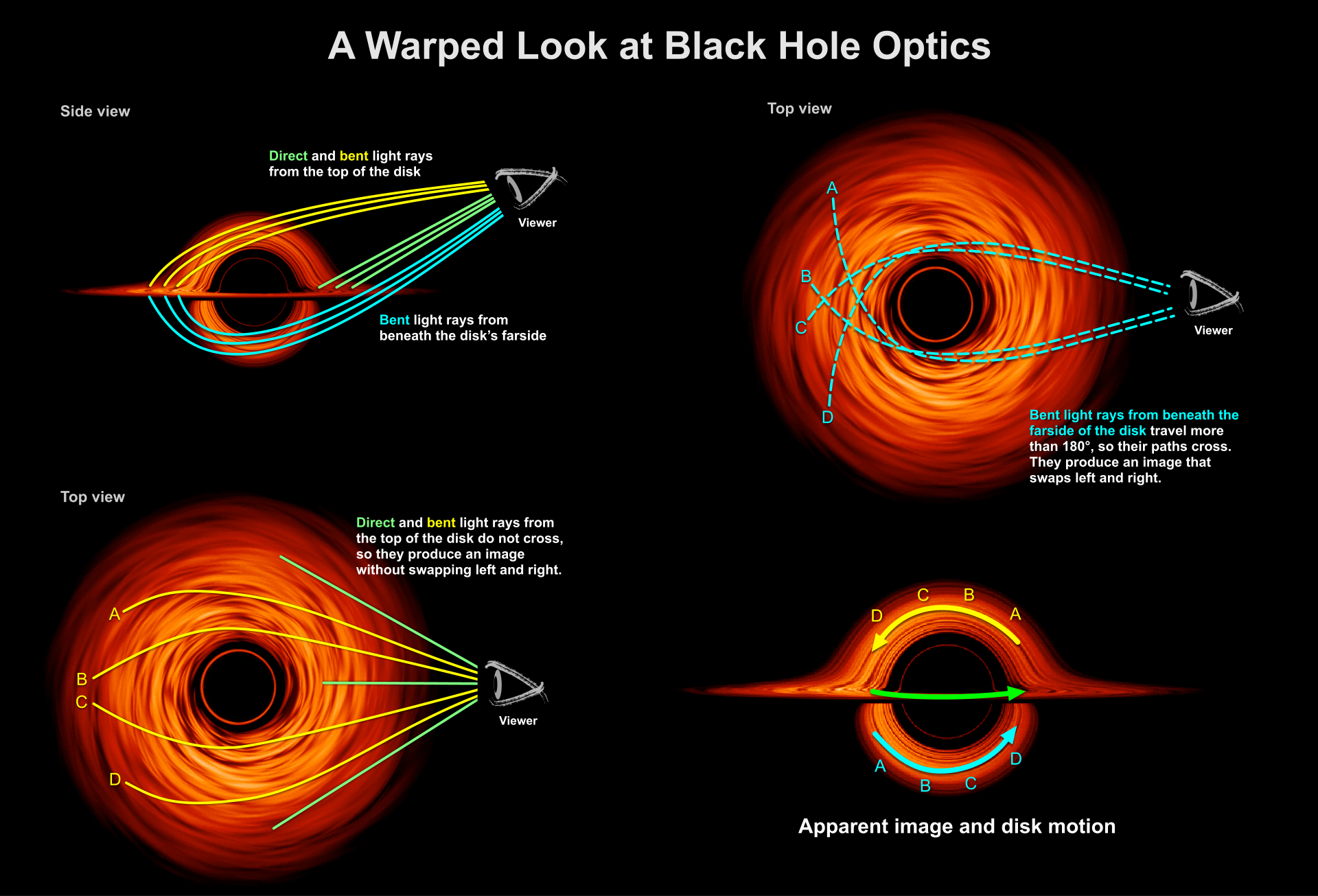

This visual illustrates how a spinning black hole distorts the appearance of its accretion disk. Due to gravitational lensing and relativistic beaming, we can observe both the underside of the disk and asymmetric brightness, with the side rotating toward us appearing brighter.you can watch the simulations at NASA.

Energy Generation and Jets

The conversion of gravitational potential energy into radiation is the primary mechanism for energy generation in accretion disks. As matter falls inward, it loses potential energy, which is transformed into kinetic energy and subsequently into thermal radiation.
Energy Conversion Efficiency
Black hole accretion is remarkably efficient in converting mass into energy, far exceeding nuclear fusion. For non-rotating Schwarzschild black holes, about 6% of the infalling mass is converted to radiation, while for rapidly spinning Kerr black holes, this efficiency can reach up to 42%. This efficiency makes black holes the most efficient energy sources in the universe, comparable to or exceeding the efficiency of thermonuclear processes in stars.
Astrophysical Jets
The formation of relativistic jets is a defining feature of some accreting black holes. Magnetic fields anchored in the disk and twisted by the black hole’s spin can launch jets through mechanisms like the Blandford-Znajek process. These jets play a vital role in transferring energy to interstellar and intergalactic environments, influencing large-scale structures.
Notable examples of jet-emitting systems include M87*, the first black hole imaged by the Event Horizon Telescope, and various microquasars, such as the black hole in the system GRS 1915+105, that exhibit similar jet phenomena with velocities approaching 99% of the speed of light.

Observational Evidence

The study of accretion disks and jets relies heavily on high-energy observations:
High-Energy Observations: X-ray telescopes, such as NASA's Chandra X-ray Observatory, and radio interferometers, like the Very Large Array (VLA), have been instrumental in revealing the properties of accretion disks and the jets they produce. X-ray emission from black hole accretion disks typically spans from 1019 Hz to 1023 Hz, while radio jets emit at much lower frequencies, extending to 109 Hz.
Quasars and AGN: Quasars are among the most luminous objects in the universe, powered by the accretion of material onto supermassive black holes. Their extreme brightness, often exceeding 1048 ergs per second, makes them excellent subjects for studying the effects of accretion on cosmic scales.
Multiwavelength Studies: Combining observations across various wavelengths—X-ray, optical, and radio—enables a comprehensive analysis of accretion processes and their effects on the surrounding environment. For example, the Hubble Space Telescope’s multiwavelength observations have provided crucial insights into the ultraviolet and optical emissions from accreting systems.
Revealing the Role of Black Hole Spin
Observations of the Fe K-alpha emission line—a spectral feature produced by iron atoms in the inner disk—have been used to estimate black hole spin, offering clues about accretion histories. Recent studies suggest that black holes with masses greater than 106M exhibit spin rates nearing the maximal value, a=1 , for Kerr black holes.

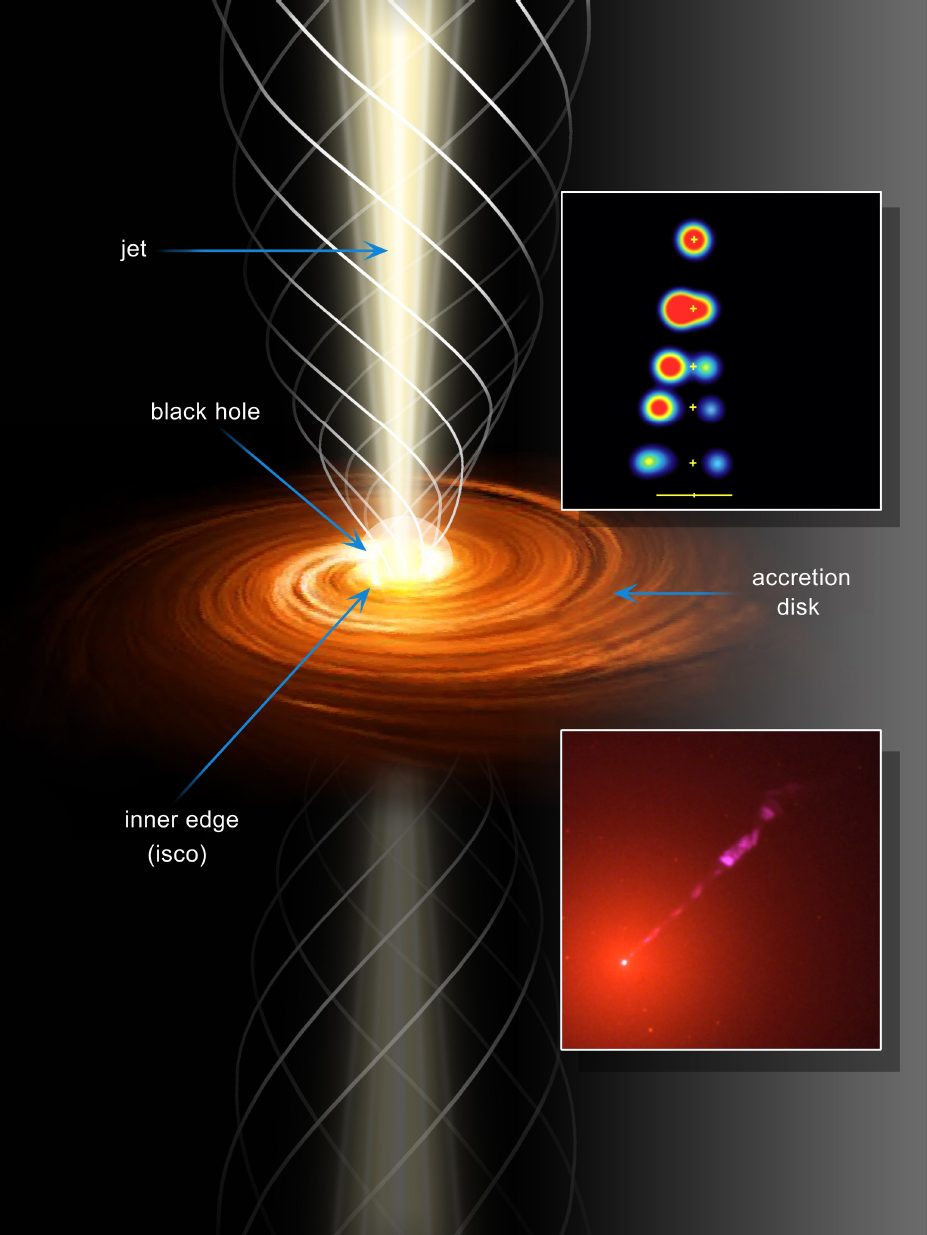

Simulation snapshot of a magnetized accretion disk around a spinning black hole, showing plasma density and jet formation. Magnetic fields extract rotational energy from the black hole, launching relativistic jets along the poles.The extra figures show a time sequence of radio images from the jet in, GRS 1915+105 and an optical image of the jet in quasar, M87".

Implications for Galaxy Evolution

AGN Feedback
Accreting black holes significantly impact their host galaxies:
Radiative Feedback: Energy emitted from accretion heats surrounding gas, potentially suppressing star formation. For example, the feedback from AGN can increase the temperature of the surrounding gas to millions of degrees, preventing it from cooling and collapsing into new stars.
Mechanical Feedback: Jets and winds inject momentum into the interstellar medium, regulating galaxy growth. Simulations show that AGN feedback may expel as much as 10% of a galaxy’s mass through energetic outflows.

SMBH-Galaxy Co-Evolution

The observed correlation between supermassive black hole mass and galaxy bulge velocity dispersion underscores the role of accretion in co-evolving black holes and galaxies. This correlation, exemplified by the MBH-σ relation, suggests that the growth of black holes and their host galaxies are tightly linked through accretion processes.

Challenges and Future Directions

Theoretical Complexities

Accurately modeling the role of magnetohydrodynamic (MHD) turbulence and magnetic reconnection in accretion disks remains a significant challenge. Current simulations involve complex 3D models that require supercomputing power to resolve the intricate dynamics of the accretion flow.
Advancements in Observational Techniques
Upcoming facilities like the James Webb Space Telescope (JWST) and next-generation X-ray observatories promise higher sensitivity and resolution, enabling more detailed studies of accretion physics. The James Webb Space Telescope, with its infrared capabilities, is expected to detect the thermal emissions from accretion disks around black holes at redshifts of up to 10, opening new windows into the high-redshift universe.
AI and Big Data
Machine learning algorithms are increasingly employed to analyze large datasets from multiwavelength surveys, offering new insights into accretion phenomena. These algorithms can process petabytes of observational data, revealing hidden patterns in the behavior of accreting systems that were previously undetectable.

Annotated structure of a black hole accretion system, including the event horizon, ergosphere, inner disk edge (ISCO), corona, and polar jets. This setup illustrates key regions involved in accretion dynamics and energy extractionshows and shows how a standard infrared double-peak is produced by a black hole's accretion disk. credit: NOIRLab/NSF/AURA/P. Marenfeld.

Conclusion:

In conclusion, black hole accretion serves as a powerful engine of cosmic energy, fundamentally shaping the structure and evolution of the universe. By studying accretion disks and their associated phenomena, astrophysicists gain valuable insights into the complex interactions between black holes and their surroundings, ultimately enhancing our understanding of cosmic evolution. The continued exploration of accretion processes promises to unveil further secrets of the universe and the fundamental forces that govern its behavior.

References:

1. Narayan, R., & McClintock, J. E. (2013). "Observational Evidence for Black Holes." The Astrophysical Journal, 584(1), 843-871.
2. Kormendy, J., & Ho, L. C. (2013). "Coevolution (or not) of Supermassive Black Holes and Host Galaxies." Annual Review of Astronomy and Astrophysics, 51, 511-653.
3. Blandford, R. D., & Znajek, R. L. (1977). "Electromagnetic Extraction of Energy from a Kerr Black Hole." Monthly Notices of the Royal Astronomical Society, 179(3), 433-456.
4. Merloni, A., Heinz, S., & di Matteo, T. (2003). "A Fundamental Plane of Black Hole Activity." Monthly Notices of the Royal Astronomical Society, 345(4), 1057-1076.
